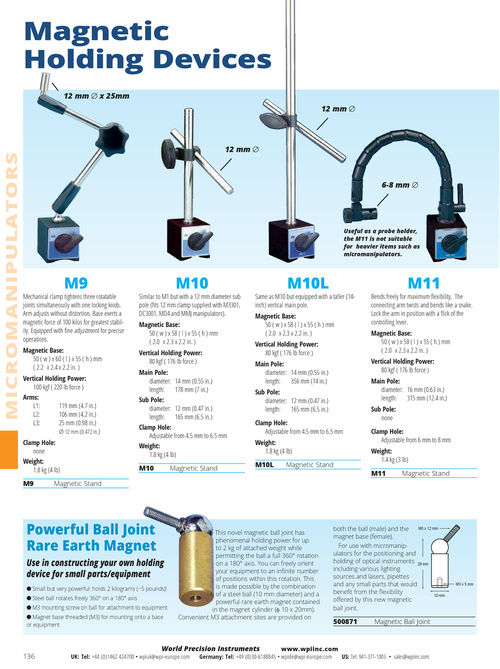

Magnetic Holding Devices 12 mm ∅ x 25mm 12 mm ∅ MICROMANIPULATORS 12 mm ∅ 6-8 mm ∅ Useful as a probe holder, the M11 is not suitable for heavier items such as micromanipulators. Mechanical clamp tightens three rotatable joints simultaneously with one locking knob . Arm adjusts without distortion . Base exerts a magnetic force of 100 kilos for greatest stability . Equipped with fine adjustment for precise operations . Magnetic Base: 50 ( w ) x 60 ( l ) x 55 ( h ) mm ( 2.2 x 2.4 x 2.2 in. ) Vertical Holding Power: 100 kgf ( 220 lb force ) Arms: L1: 119 mm (4 .7 in .) L2: 106 mm (4 .2 in .) L3: 25 mm (0 .98 in .) Clamp Hole: none Weight: 1 .8 kg (4 lb) M9 Magnetic Stand M9 Similar to M1 but with a 12 mm diameter sub pole (fits 12 mm clamp supplied with M3301, DC3001, MD4 and MMJ manipulators) . Magnetic Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. ) Vertical Holding Power: 80 kgf ( 176 lb force ) Main Pole: diameter: 14 mm (0 .55 in .) length: 178 mm (7 in .) Sub Pole: diameter: 12 mm (0 .47 in .) length: 165 mm (6 .5 in .) Clamp Hole: Adjustable from 4 .5 mm to 6 .5 mm Weight: 1 .8 kg (4 lb) M10 Magnetic Stand M10 Same as M10 but equipped with a taller (14inch) vertical main pole. Magnetic Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. ) Vertical Holding Power: 80 kgf ( 176 lb force ) Main Pole: diameter: 14 mm (0 .55 in .) length: 356 mm (14 in .) Sub Pole: diameter: 12 mm (0 .47 in .) length: 165 mm (6 .5 in .) Clamp Hole: Adjustable from 4 .5 mm to 6 .5 mm Weight: 1 .8 kg (4 lb) M10L Magnetic Stand M10L Bends freely for maximum flexibility . The connecting arm twists and bends like a snake . Lock the arm in position with a flick of the controlling lever. Magnetic Base: 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in. ) Vertical Holding Power: 80 kgf ( 176 lb force ) Main Pole: diameter: 16 mm (0 .63 in .) length: 315 mm (12 .4 in .) Sub Pole: none Clamp Hole: Adjustable from 6 mm to 8 mm Weight: 1 .4 kg (3 lb) M11 Magnetic Stand M11 Ø 12 mm (0 .472 in .) Powerful Ball Joint Rare Earth Magnet Use in constructing your own holding device for small parts/equipment ● Small but very powerful: holds 2 kilograms (~5 pounds)! ● Steel ball rotates freely 360° on a 180° axis ● M3 mounting screw on ball for attachment to equipment ● Magnet base threaded (M3) for mounting onto a base or equipment This novel magnetic ball joint has phenomenal holding power for up to 2 kg of attached weight while permitting the ball a full 360° rotation on a 180° axis. You can freely orient your equipment to an infinite number of positions within this rotation. This is made possible by the combination of a steel ball (10 mm diameter) and a powerful rare earth magnet contained in the magnet cylinder (φ 10 x 20mm). Convenient M3 attachment sites are provided on M3 x 12 mm both the ball (male) and the magnet base (female). For use with micromanipulators for the positioning and holding of optical instruments 28 mm including various lighting sources and lasers, pipettes and any small parts that would benefit from the flexibility 10 mm offered by this new magnetic ball joint. M3 x 5 mm 500871 Magnetic Ball Joint 136 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
