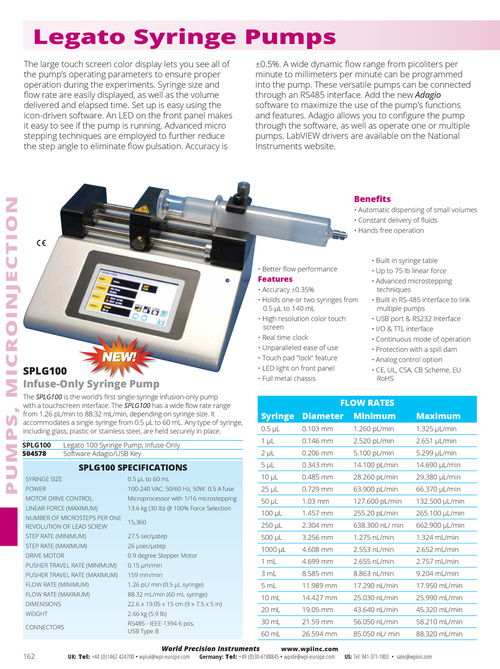

Legato Syringe Pumps The large touch screen color display lets you see all of the pump’s operating parameters to ensure proper operation during the experiments. Syringe size and flow rate are easily displayed, as well as the volume delivered and elapsed time. Set up is easy using the icon-driven software. An LED on the front panel makes it easy to see if the pump is running. Advanced micro stepping techniques are employed to further reduce the step angle to eliminate flow pulsation. Accuracy is ±0.5%. A wide dynamic flow range from picoliters per minute to millimeters per minute can be programmed into the pump. These versatile pumps can be connected through an RS485 interface. Add the new Adagio software to maximize the use of the pump’s functions and features. Adagio allows you to configure the pump through the software, as well as operate one or multiple pumps. LabVIEW drivers are available on the National Instruments website. PUMPS, MICROINJECTION Benefits • Automatic dispensing of small volumes • Constant delivery of fluids • Hands free operation Features • Better flow performance SPLG100 Infuse-Only Syringe Pump The SPLG100 is the world’s first single-syringe infusion-only pump with a touchscreen interface. The SPLG100 has a wide flow rate range from 1.26 pL/min to 88.32 mL/min, depending on syringe size. It accommodates a single syringe from 0.5 µL to 60 mL. Any type of syringe, including glass, plastic or stainless steel, are held securely in place. SPLG100 504578 SYRINGE SIZE POWER MOTOR DRIVE CONTROL LINEAR FORCE (MAXIMUM) NUMBER OF MICROSTEPS PER ONE REVOLUTION OF LEAD SCREW STEP RATE (MINIMUM) STEP RATE (MAXIMUM) DRIVE MOTOR PUSHER TRAVEL RATE (MINIMUM) PUSHER TRAVEL RATE (MAXIMUM) FLOW RATE (MINIMUM) FLOW RATE (MAXIMUM) DIMENSIONS WEIGHT CONNECTORS • Accuracy ±0.35% • Holds one or two syringes from 0.5 μL to 140 mL • High resolution color touch screen • Real time clock • Unparalleled ease of use • Touch pad "lock" feature • LED light on front panel • Full metal chassis • Built in syringe table • Up to 75 lb linear force • Advanced microstepping techniques • Built in RS-485 interface to link multiple pumps • USB port & RS232 Interface • I/O & TTL interface • Continuous mode of operation • Protection with a spill dam • Analog control option • CE, UL, CSA, CB Scheme, EU RoHS FLOW RATES Syringe Diameter 0.5 μL 1 μL 2 μL 5 μL 10 μL 25 μL 50 μL 100 μL 250 μL 500 μL 1000 μL 1 mL 3 mL 5 mL 10 mL 20 mL 30 mL 60 mL 0.103 mm 0.146 mm 0.206 mm 0.343 mm 0.485 mm 0.729 mm 1.03 mm 1.457 mm 2.304 mm 3.256 mm 4.608 mm 4.699 mm 8.585 mm 11.989 mm 14.427 mm 19.05 mm 21.59 mm 26.594 mm Minimum 1.260 pL/min 2.520 pL/min 5.100 pL/min 14.100 pL/min 28.260 pL/min 63.900 pL/min 127.600 pL/min 255.20 pL/min 638.300 nL/ min 1.275 nL/min 2.553 nL/min 2.655 nL/min 8.863 nL/min 17.290 nL/min 25.030 nL/min 43.640 nL/min 56.050 nL/min 85.050 nL/ min Maximum 1.325 μL/min 2.651 μL/min 5.299 μL/min 14.690 μL/min 29.380 μL/min 66.370 μL/min 132.500 μL/min 265.100 μL/min 662.900 μL/min 1.324 mL/min 2.652 mL/min 2.757 mL/min 9.204 mL/min 17.950 mL/min 25.990 mL/min 45.320 mL/min 58.210 mL/min 88.320 mL/min Legato 100 Syringe Pump, Infuse-Only Software Adagio/USB Key SPLG100 SPECIFICATIONS 0.5 μL to 60 mL 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse Microprocessor with 1/16 microstepping 13.6 kg (30 lb) @ 100% Force Selection 15,360 27.5 sec/μstep 26 μsec/μstep 0.9 degree Stepper Motor 0.15 μm/min 159 mm/min 1.26 pL/ min (0.5 μL syringe) 88.32 mL/min (60 mL syringe) 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in) 2.66 kg (5.9 lb) RS485 - IEEE-1394 6 pos, USB Type B 162 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
