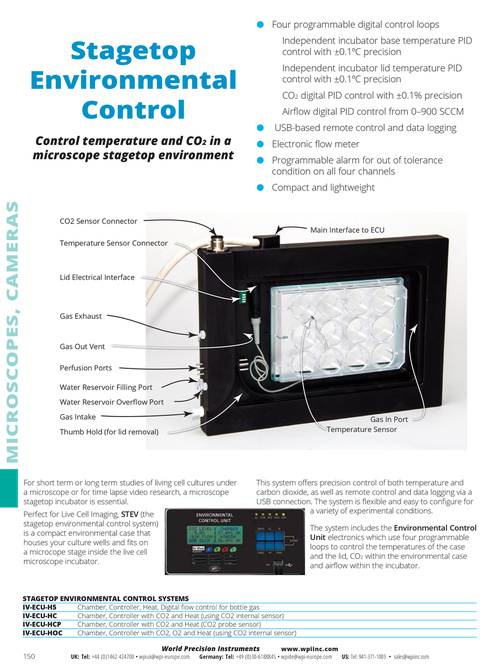

● Four programmable digital control loops Stagetop Environmental Control Control temperature and CO2 in a microscope stagetop environment Independent incubator base temperature PID control with ±0.1ºC precision Independent incubator lid temperature PID control with ±0.1ºC precision CO2 digital PID control with ±0.1% precision Airflow digital PID control from 0–900 SCCM ● USB-based remote control and data logging ● Electronic flow meter ● Programmable alarm for out of tolerance condition on all four channels ● Compact and lightweight MICROSCOPES, CAMERAS Stagetop Environment - Open CO2 Sensor Connector Temperature Sensor Connector Main Interface to ECU Lid Electrical Interface Gas Exhaust Gas Out Vent Perfusion Ports Water Reservoir Filling Port Water Reservoir Overflow Port Gas Intake Thumb Hold (for lid removal) Gas In Port Temperature Sensor For short term or long term studies of living cell cultures under a microscope or for time lapse video research, a microscope stagetop incubator is essential. Perfect for Live Cell Imaging, STEV (the stagetop environmental control system) is a compact environmental case that houses your culture wells and fits on a microcope stage inside the live cell microscope incubator. This system offers precision control of both temperature and carbon dioxide, as well as remote control and data logging via a USB connection. The system is flexible and easy to configure for a variety of experimental conditions. The system includes the Environmental Control Unit electronics which use four programmable loops to control the temperatures of the case and the lid, CO2 within the environmental case and airflow within the incubator. STAGETOP ENVIRONMENTAL CONTROL SYSTEMS IV-ECU-H5 Chamber, Controller, Heat, Digital flow control for bottle gas IV-ECU-HC Chamber, Controller with CO2 and Heat (using CO2 internal sensor) IV-ECU-HCP Chamber, Controller with CO2 and Heat (CO2 probe sensor) IV-ECU-HOC Chamber, Controller with CO2, O2 and Heat (using CO2 internal sensor) 150 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
