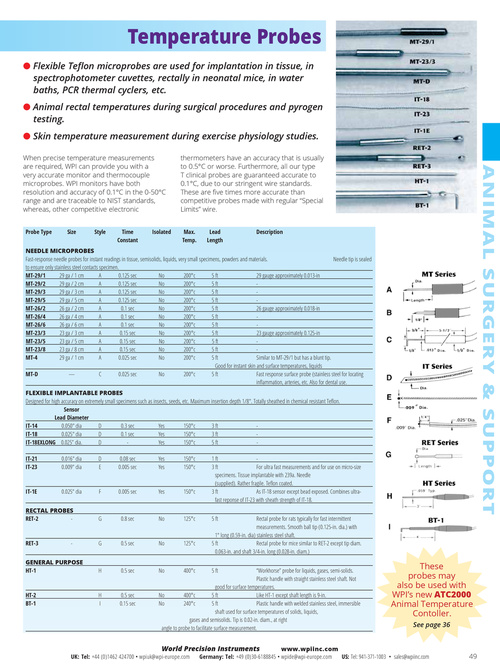

Temperature Probes ● Flexible Teflon microprobes are used for implantation in tissue, in spectrophotometer cuvettes, rectally in neonatal mice, in water baths, PCR thermal cyclers, etc. ● Animal rectal temperatures during surgical procedures and pyrogen testing. ● Skin temperature measurement during exercise physiology studies. When precise temperature measurements are required, WPI can provide you with a very accurate monitor and thermocouple microprobes. WPI monitors have both resolution and accuracy of 0.1°C in the 0-50°C range and are traceable to NIST standards, whereas, other competitive electronic Probe Type Size Style Time Constant Isolated thermometers have an accuracy that is usually to 0.5°C or worse. Furthermore, all our type T clinical probes are guaranteed accurate to 0.1°C, due to our stringent wire standards. These are five times more accurate than competitive probes made with regular “Special Limits” wire. Max. Temp. Lead Length Description ANIMAL SURGERY & SUPPORT NEEDLE MICROPROBES Fast-response needle probes for instant readings in tissue, semisolids, liquids, very small specimens, powders and materials. Needle tip is sealed to ensure only stainless steel contacts specimen . MT-29/1 29 ga / 1 cm A 0 .125 sec No 200°c 5 ft 29 gauge approximately 0 .013-in MT-29/2 29 ga / 2 cm A 0 .125 sec No 200°c 5 ft MT-29/3 29 ga / 3 cm A 0 .125 sec No 200°c 5 ft MT-29/5 29 ga / 5 cm A 0 .125 sec No 200°c 5 ft MT-26/2 26 ga / 2 cm A 0 .1 sec No 200°c 5 ft 26 gauge approximately 0 .018-in MT-26/4 26 ga / 4 cm A 0 .1 sec No 200°c 5 ft MT-26/6 26 ga / 6 cm A 0 .1 sec No 200°c 5 ft MT-23/3 23 ga / 3 cm A 0 .15 sec No 200°c 5 ft 23 gauge approximately 0 .125-in MT-23/5 23 ga / 5 cm A 0 .15 sec No 200°c 5 ft MT-23/8 23 ga / 8 cm A 0 .15 sec No 200°c 5 ft MT-4 29 ga / 1 cm A 0 .025 sec No 200°c 5 ft Similar to MT-29/1 but has a blunt tip . Good for instant skin and surface temperatures, liquids MT-D — C 0 .025 sec No 200°c 5 ft Fast response surface probe (stainless steel for locating inflammation, arteries, etc . Also for dental use . FLEXIBLE IMPLANTABLE PROBES Designed for high accuracy on extremely small specimens such as insects, seeds, etc . Maximum insertion depth 1/8" . Totally sheathed in chemical resistant Teflon . Sensor Lead Diameter IT-14 0 .050" dia D 0 .3 sec Yes 150°c 3 ft IT-18 0 .025" dia D 0 .1 sec Yes 150°c 3 ft IT-18EXLONG 0 .025” dia . D Yes 150°c 5 ft IT-21 IT-23 0 .016" dia 0 .009" dia D E 0 .08 sec 0 .005 sec Yes Yes 150°c 150°c 1 ft 3 ft For ultra fast measurements and for use on micro-size specimens . Tissue implantable with 239a . Needle (supplied) . Rather fragile . Teflon coated . 3 ft As IT-18 sensor except bead exposed . Combines ultrafast reponse of IT-23 with sheath strength of IT-18 . 5 ft Rectal probe for rats typically for fast intermittent measurements . Smooth ball tip (0 .125-in . dia .) with 1" long (0 .59-in . dia) stainless steel shaft . 5 ft Rectal probe for mice similar to RET-2 except tip diam . 0 .063-in . and shaft 3/4-in . long (0 .028-in . diam .) 5 ft IT-1E 0 .025" dia F 0 .005 sec Yes 150°c RECTAL PROBES RET-2 - G 0 .8 sec No 125°c RET-3 - G 0 .5 sec No 125°c GENERAL PURPOSE HT-1 H 0 .5 sec No HT-2 BT-1 H I 0 .5 sec 0 .15 sec “Workhorse” probe for liquids, gases, semi-solids . Plastic handle with straight stainless steel shaft . Not good for surface temperatures . No 400°c 5 ft Like HT-1 except shaft length is 9-in . No 240°c 5 ft Plastic handle with welded stainless steel, immersible shaft used for surface temperatures of solids, liquids, gases and semisolids . Tip is 0 .02-in . diam ., at right angle to probe to facilitate surface measurement . 400°c These probes may also be used with WPI’s new ATC2000 Animal Temperature Contoller. See page 36 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 49
