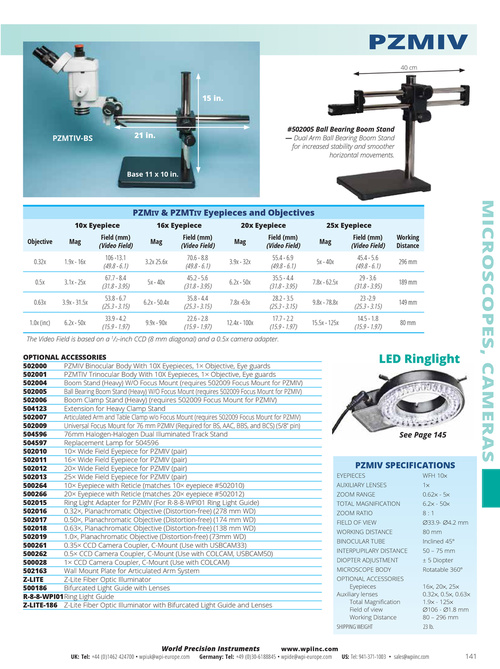

15 in. PZMIV 40 cm PZMTIV-BS 21 in. #502005 Ball Bearing Boom Stand — Dual Arm Ball Bearing Boom Stand for increased stability and smoother horizontal movements. Base 11 x 10 in. MICROSCOPES, CAMERAS PZMIV & PZMTIV Eyepieces and Objectives 10x Eyepiece Objective 0 .32x 0 .5x 0 .63x 1 .0x (inc) Mag 1 .9x - 16x 3 .1x - 25x 3 .9x - 31 .5x 6 .2x - 50x Field (mm) (Video Field) 106 -13 .1 (49 .8 - 6 .1) 67 .7 - 8 .4 (31 .8 - 3 .95) 53 .8 - 6 .7 (25 .3 - 3 .15) 33 .9 - 4 .2 (15 .9 - 1 .97) 16x Eyepiece Mag 3 .2x 25 .6x 5x - 40x 6 .2x - 50 .4x 9 .9x - 90x Field (mm) (Video Field) 70 .6 - 8 .8 (49 .8 - 6 .1) 45 .2 - 5 .6 (31 .8 - 3 .95) 35 .8 - 4 .4 (25 .3 - 3 .15) 22 .6 - 2 .8 (15 .9 - 1 .97) 20x Eyepiece Mag 3 .9x - 32x 6 .2x - 50x 7 .8x -63x 12 .4x - 100x Field (mm) (Video Field) 55 .4 - 6 .9 (49 .8 - 6 .1) 35 .5 - 4 .4 (31 .8 - 3 .95) 28 .2 - 3 .5 (25 .3 - 3 .15) 17 .7 - 2 .2 (15 .9 - 1 .97) 25x Eyepiece Mag 5x - 40x 7 .8x - 62 .5x 9 .8x - 78 .8x 15 .5x - 125x Field (mm) (Video Field) 45 .4 - 5 .6 (49 .8 - 6 .1) 29 - 3 .6 (31 .8 - 3 .95) 23 -2 .9 (25 .3 - 3 .15) 14 .5 - 1 .8 (15 .9 - 1 .97) Working Distance 296 mm 189 mm 149 mm 80 mm The Video Field is based on a 1/2-inch CCD (8 mm diagonal) and a 0.5x camera adapter. OPTIONAL ACCESSORIES 502000 PZMIV Binocular Body With 10X Eyepieces, 1× Objective, Eye guards 502001 PZMTIV Trinocular Body With 10X Eyepieces, 1× Objective, Eye guards 502004 Boom Stand (Heavy) W/O Focus Mount (requires 502009 Focus Mount for PZMIV) 502005 Ball Bearing Boom Stand (Heavy) W/O Focus Mount (requires 502009 Focus Mount for PZMIV) 502006 Boom Clamp Stand (Heavy) (requires 502009 Focus Mount for PZMIV) 504123 Extension for Heavy Clamp Stand 502007 Articulated Arm and Table Clamp w/o Focus Mount (requires 502009 Focus Mount for PZMIV) 502009 Universal Focus Mount for 76 mm PZMIV (Required for BS, AAC, BBS, and BCS) (5/8” pin) 504596 76mm Halogen-Halogen Dual Illuminated Track Stand 504597 Replacement Lamp for 504596 502010 10× Wide Field Eyepiece for PZMIV (pair) 502011 16× Wide Field Eyepiece for PZMIV (pair) 502012 20× Wide Field Eyepiece for PZMIV (pair) 502013 25× Wide Field Eyepiece for PZMIV (pair) 500264 10× Eyepiece with Reticle (matches 10× eyepiece #502010) 500266 20× Eyepiece with Reticle (matches 20× eyepiece #502012) 502015 Ring Light Adapter for PZMIV (For R-8-8-WPI01 Ring Light Guide) 502016 0.32×, Planachromatic Objective (Distortion-free) (278 mm WD) 502017 0.50×, Planachromatic Objective (Distortion-free) (174 mm WD) 502018 0.63×, Planachromatic Objective (Distortion-free) (138 mm WD) 502019 1.0×, Planachromatic Objective (Distortion-free) (73mm WD) 500261 0.35× CCD Camera Coupler, C-Mount (Use with USBCAM33) 500262 0.5× CCD Camera Coupler, C-Mount (Use with COLCAM, USBCAM50) 500028 1× CCD Camera Coupler, C-Mount (Use with COLCAM) 502163 Wall Mount Plate for Articulated Arm System Z-LITE Z-Lite Fiber Optic Illuminator 500186 Bifurcated Light Guide with Lenses R-8-8-WPI01 Ring Light Guide Z-LITE-186 Z-Lite Fiber Optic Illuminator with Bifurcated Light Guide and Lenses LED Ringlight See Page 145 PZMIV SPECIFICATIONS EYEPIECES AUXILIARY LENSES ZOOM RANGE TOTAL MAGNIFICATION ZOOM RATIO FIELD OF VIEW WORKING DISTANCE BINOCULAR TUBE INTERPUPILARY DISTANCE DIOPTER ADJUSTMENT MICROSCOPE BODY OPTIONAL ACCESSORIES Eyepieces Auxiliary lenses Total Magnification Field of view Working Distance SHIPPING WEIGHT WFH 10× 1× 0.62× - 5× 6.2× - 50× 8:1 ∅33.9- ∅4.2 mm 80 mm Inclined 45° 50 – 75 mm ± 5 Diopter Rotatable 360° 16×, 20×, 25× 0.32×, 0.5×, 0.63× 1.9× - 125× ∅106 - ∅1.8 mm 80 – 296 mm 23 lb. UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com 141
