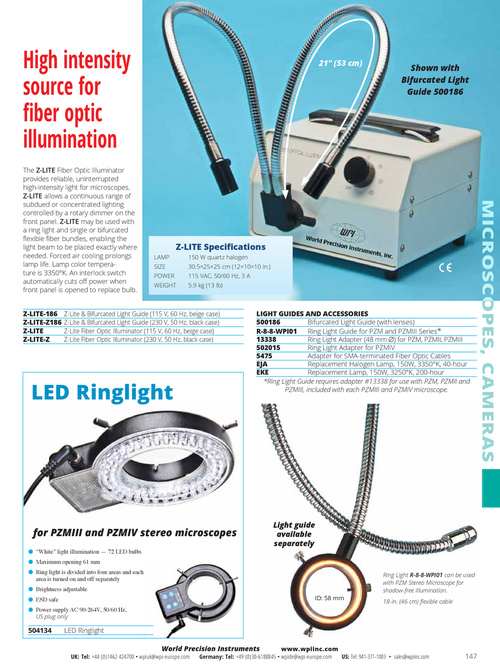

High intensity source for fiber optic illumination The Z-LITE Fiber Optic Illuminator provides reliable, uninterrupted high-intensity light for microscopes. Z-LITE allows a continuous range of subdued or concentrated lighting controlled by a rotary dimmer on the front panel. Z-LITE may be used with a ring light and single or bifurcated flexible fiber bundles, enabling the light beam to be placed exactly where needed. Forced air cooling prolongs lamp life. Lamp color temperature is 3350°K. An interlock switch automatically cuts off power when front panel is opened to replace bulb. Z-LITE-186 Z-LITE-Z186 Z-LITE Z-LITE-Z 21" (53 cm) Shown with Bifurcated Light Guide 500186 MICROSCOPES, CAMERAS Z-LITE Specifications LAMP SIZE POWER WEIGHT 150 W quartz halogen 30.5×25×25 cm (12×10×10 in.) 115 VAC, 50/60 Hz, 3 A 5.9 kg (13 lb) Z-Lite & Bifurcated Light Guide (115 V, 60 Hz, beige case) Z-Lite & Bifurcated Light Guide (230 V, 50 Hz, black case) Z-Lite Fiber Optic Illuminator (115 V, 60 Hz, beige case) Z-Lite Fiber Optic Illuminator (230 V, 50 Hz, black case) LED Ringlight LIGHT GUIDES AND ACCESSORIES 500186 Bifurcated Light Guide (with lenses) R-8-8-WPI01 Ring Light Guide for PZM and PZMIII Series* Ring Light Adapter (48 mm ∅) for PZM, PZMII, PZMIII 13338 502015 Ring Light Adapter for PZMIV 5475 Adapter for SMA-terminated Fiber Optic Cables EJA Replacement Halogen Lamp, 150W, 3350°K, 40-hour EKE Replacement Lamp, 150W, 3250°K, 200-hour *Ring Light Guide requires adapter #13338 for use with PZM, PZMII and PZMIII, included with each PZMIII and PZMIV microscope. for PZMIII and PZMIV stereo microscopes ● “White” light illumination — 72 LED bulbs ● Maximum opening 61 mm ● Ring light is divided into four areas and each area is turned on and off separately ● Brightness adjustable ● ESD safe ● Power supply AC 90-264V, 50/60 Hz, US plug only Light guide available separately ID: 58 mm Ring Light R-8-8-WPI01 can be used with PZM Stereo Microscope for shadow-free illumination. 18-in. (46 cm) flexible cable 504134 LED Ringlight World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com 147
