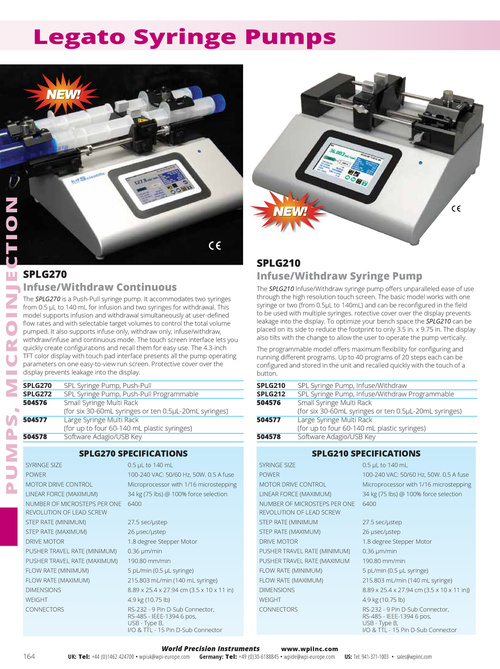

Legato Syringe Pumps PUMPS, MICROINJECTION SPLG270 Infuse/Withdraw Continuous The SPLG270 is a Push-Pull syringe pump. It accommodates two syringes from 0.5 μL to 140 mL for infusion and two syringes for withdrawal. This model supports infusion and withdrawal simultaneously at user-defined flow rates and with selectable target volumes to control the total volume pumped. It also supports infuse only, withdraw only, infuse/withdraw, withdraw/infuse and continuous mode. The touch screen interface lets you quickly create configurations and recall them for easy use. The 4.3-inch TFT color display with touch pad interface presents all the pump operating parameters on one easy-to-view run screen. Protective cover over the display prevents leakage into the display. SPLG210 Infuse/Withdraw Syringe Pump The SPLG210 Infuse/Withdraw syringe pump offers unparalleled ease of use through the high resolution touch screen. The basic model works with one syringe or two (from 0.5µL to 140mL) and can be reconfigured in the field to be used with multiple syringes. rotective cover over the display prevents leakage into the display. To optimize your bench space the SPLG210 can be placed on its side to reduce the footprint to only 3.5 in. x 9.75 in. The display also tilts with the change to allow the user to operate the pump vertically. The programmable model offers maximum flexibility for configuring and running different programs. Up to 40 programs of 20 steps each can be configured and stored in the unit and recalled quickly with the touch of a button. SPLG270 SPLG272 504576 504577 504578 SPL Syringe Pump, Push-Pull SPL Syringe Pump, Push-Pull Programmable Small Syringe Multi Rack (for six 30-60mL syringes or ten 0.5µL-20mL syringes) Large Syringe Multi Rack (for up to four 60-140 mL plastic syringes) Software Adagio/USB Key SPLG210 SPLG212 504576 504577 504578 SPL Syringe Pump, Infuse/Withdraw SPL Syringe Pump, Infuse/Withdraw Programmable Small Syringe Multi Rack (for six 30-60mL syringes or ten 0.5µL-20mL syringes) Large Syringe Multi Rack (for up to four 60-140 mL plastic syringes) Software Adagio/USB Key SPLG270 SPECIFICATIONS SYRINGE SIZE POWER MOTOR DRIVE CONTROL LINEAR FORCE (MAXIMUM) NUMBER OF MICROSTEPS PER ONE REVOLUTION OF LEAD SCREW STEP RATE (MINIMUM) STEP RATE (MAXIMUM) DRIVE MOTOR PUSHER TRAVEL RATE (MINIMUM) PUSHER TRAVEL RATE (MAXIMUM) FLOW RATE (MINIMUM) FLOW RATE (MAXIMUM) DIMENSIONS WEIGHT CONNECTORS 0.5 μL to 140 mL 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse Microprocessor with 1/16 microstepping 34 kg (75 lbs) @ 100% force selection 6400 27.5 sec/μstep 26 μsec/μstep 1.8 degree Stepper Motor 0.36 μm/min 190.80 mm/min 5 pL/min (0.5 μL syringe) 215.803 mL/min (140 mL syringe) 8.89 x 25.4 x 27.94 cm (3.5 x 10 x 11 in) 4.9 kg (10.75 lb) RS-232 - 9 Pin D-Sub Connector, RS-485 - IEEE-1394 6 pos, USB - Type B, I/O & TTL - 15 Pin D-Sub Connector SYRINGE SIZE POWER SPLG210 SPECIFICATIONS 0.5 μL to 140 mL 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse Microprocessor with 1/16 microstepping 34 kg (75 lbs) @ 100% force selection 6400 27.5 sec/μstep 26 μsec/μstep 1.8 degree Stepper Motor 0.36 μm/min 190.80 mm/min 5 pL/min (0.5 μL syringe) 215.803 mL/min (140 mL syringe) 8.89 x 25.4 x 27.94 cm (3.5 x 10 x 11 in)) 4.9 kg (10.75 lb) RS-232 - 9 Pin D-Sub Connector, RS-485 - IEEE-1394 6 pos, USB - Type B, I/O & TTL - 15 Pin D-Sub Connector MOTOR DRIVE CONTROL LINEAR FORCE (MAXIMUM) NUMBER OF MICROSTEPS PER ONE REVOLUTION OF LEAD SCREW STEP RATE (MINIMUM STEP RATE (MAXIMUM) DRIVE MOTOR PUSHER TRAVEL RATE (MINIMUM) PUSHER TRAVEL RATE (MAXIMUM FLOW RATE (MINIMUM) FLOW RATE (MAXIMUM) DIMENSIONS WEIGHT CONNECTORS 164 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
