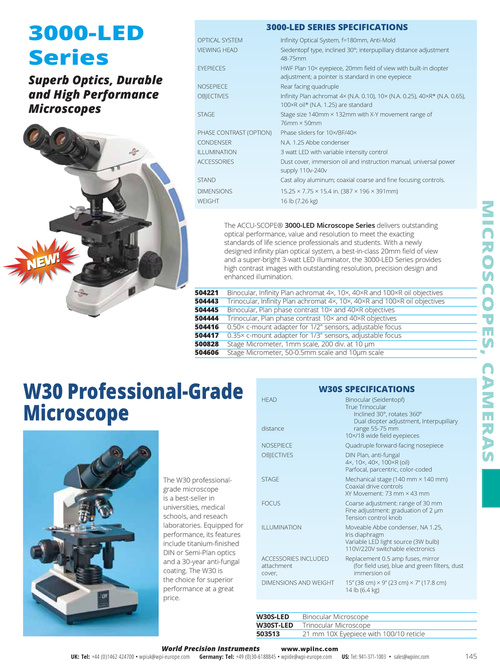

3000-LED Series Superb Optics, Durable and High Performance Microscopes 3000-LED SERIES SPECIFICATIONS OPTICAL SYSTEM VIEWING HEAD EYEPIECES NOSEPIECE OBJECTIVES STAGE PHASE CONTRAST (OPTION) CONDENSER ILLUMINATION ACCESSORIES STAND DIMENSIONS WEIGHT Infinity Optical System, f=180mm, Anti-Mold Siedentopf type, inclined 30°; interpupillary distance adjustment 48-75mm HWF Plan 10× eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece Rear facing quadruple Infinity Plan achromat 4× (N.A. 0.10), 10× (N.A. 0.25), 40×R* (N.A. 0.65), 100×R oil* (N.A. 1.25) are standard Stage size 140mm × 132mm with X-Y movement range of 76mm × 50mm Phase sliders for 10×/BF/40× N.A. 1.25 Abbe condenser 3 watt LED with variable intensity control Dust cover, immersion oil and instruction manual, universal power supply 110v-240v Cast alloy aluminum; coaxial coarse and fine focusing controls. 15.25 × 7.75 × 15.4 in. (387 × 196 × 391mm) 16 lb (7.26 kg) MICROSCOPES, CAMERAS The ACCU-SCOPE® 3000-LED Microscope Series delivers outstanding optical performance, value and resolution to meet the exacting standards of life science professionals and students. With a newly designed infinity plan optical system, a best-in-class 20mm field of view and a super-bright 3-watt LED illuminator, the 3000-LED Series provides high contrast images with outstanding resolution, precision design and enhanced illumination. 504221 504443 504445 504444 504416 504417 500828 504606 Binocular, Infinity Plan achromat 4×, 10×, 40×R and 100×R oil objectives Trinocular, Infinity Plan achromat 4×, 10×, 40×R and 100×R oil objectives Binocular, Plan phase contrast 10× and 40×R objectives Trinocular, Plan phase contrast 10× and 40×R objectives 0.50× c-mount adapter for 1/2" sensors, adjustable focus 0.35× c-mount adapter for 1/3" sensors, adjustable focus Stage Micrometer, 1mm scale, 200 div. at 10 µm Stage Micrometer, 50-0.5mm scale and 10µm scale W30 Professional-Grade Microscope The W30 professionalgrade microscope is a best-seller in universities, medical schools, and reseach laboratories. Equipped for performance, its features include titanium-finished DIN or Semi-Plan optics and a 30-year anti-fungal coating. The W30 is the choice for superior performance at a great price. W30S SPECIFICATIONS HEAD Binocular (Seidentopf) True Trinocular Inclined 30°, rotates 360° Dual diopter adjustment, Interpupillary range 55-75 mm 10×/18 wide field eyepieces Quadruple forward-facing nosepiece DIN Plan, anti-fungal 4×, 10×, 40×, 100×R (oil) Parfocal, parcentric, color-coded Mechanical stage (140 mm × 140 mm) Coaxial drive controls XY Movement: 73 mm × 43 mm Coarse adjustment: range of 30 mm Fine adjustment: graduation of 2 μm Tension control knob Moveable Abbe condenser, NA 1.25, Iris diaphragm Variable LED light source (3W bulb) 110V/220V switchable electronics Replacement 0.5 amp fuses, mirror (for field use), blue and green filters, dust immersion oil 15” (38 cm) × 9” (23 cm) × 7” (17.8 cm) 14 lb (6.4 kg) distance NOSEPIECE OBJECTIVES STAGE FOCUS ILLUMINATION ACCESSORIES INCLUDED attachment cover, DIMENSIONS AND WEIGHT W30S-LED W30ST-LED 503513 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com Binocular Microscope Trinocular Microscope 21 mm 10X Eyepiece with 100/10 reticle 145 World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
