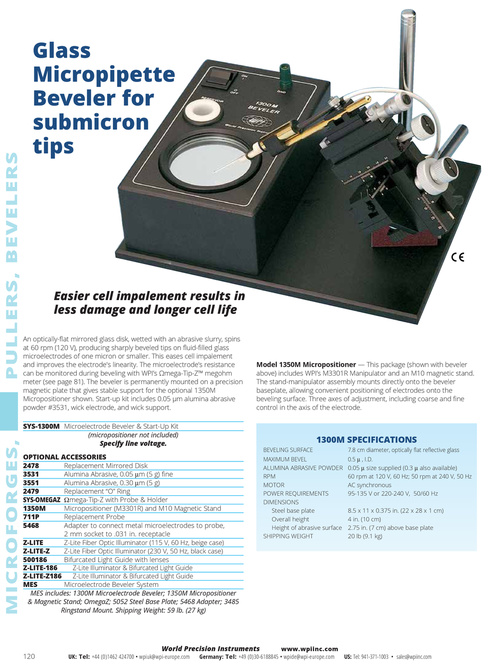

PULLERS, BEVELERS Glass Micropipette Beveler for submicron tips Easier cell impalement results in less damage and longer cell life An optically-flat mirrored glass disk, wetted with an abrasive slurry, spins at 60 rpm (120 V), producing sharply beveled tips on fluid-filled glass microelectrodes of one micron or smaller. This eases cell impalement and improves the electrode's linearity. The microelectrode’s resistance can be monitored during beveling with WPI’s Ωmega-Tip-Z™ megohm meter (see page 81). The beveler is permanently mounted on a precision magnetic plate that gives stable support for the optional 1350M Micropositioner shown. Start-up kit includes 0.05 µm alumina abrasive powder #3531, wick electrode, and wick support. SYS-1300M Microelectrode Beveler & Start-Up Kit (micropositioner not included) Specify line voltage. OPTIONAL ACCESSORIES 2478 Replacement Mirrored Disk 3531 Alumina Abrasive, 0.05 µm (5 g) fine 3551 Alumina Abrasive, 0.30 µm (5 g) 2479 Replacement “O” Ring SYS-OMEGAZ Ωmega-Tip-Z with Probe & Holder 1350M Micropositioner (M3301R) and M10 Magnetic Stand 711P Replacement Probe 5468 Adapter to connect metal microelectrodes to probe, 2 mm socket to .031 in. receptacle Z-LITE Z-Lite Fiber Optic Illuminator (115 V, 60 Hz, beige case) Z-LITE-Z Z-Lite Fiber Optic Illuminator (230 V, 50 Hz, black case) 500186 Bifurcated Light Guide with lenses Z-LITE-186 Z-Lite Illuminator & Bifurcated Light Guide Z-LITE-Z186 Z-Lite Illuminator & Bifurcated Light Guide MES Microelectrode Beveler System MES includes: 1300M Microelectrode Beveler; 1350M Micropositioner & Magnetic Stand; OmegaZ; 5052 Steel Base Plate; 5468 Adapter; 3485 Ringstand Mount. Shipping Weight: 59 lb. (27 kg) Model 1350M Micropositioner — This package (shown with beveler above) includes WPI’s M3301R Manipulator and an M10 magnetic stand. The stand-manipulator assembly mounts directly onto the beveler baseplate, allowing convenient positioning of electrodes onto the beveling surface. Three axes of adjustment, including coarse and fine control in the axis of the electrode. MICROFORGES, 1300M SPECIFICATIONS BEVELING SURFACE MAXIMUM BEVEL ALUMINA ABRASIVE POWDER RPM MOTOR POWER REQUIREMENTS DIMENSIONS Steel base plate Overall height Height of abrasive surface SHIPPING WEIGHT 7.8 cm diameter, optically flat reflective glass 0.5 µ , I.D. 0.05 µ size supplied (0.3 µ also available) 60 rpm at 120 V, 60 Hz; 50 rpm at 240 V, 50 Hz AC synchronous 95-135 V or 220-240 V, 50/60 Hz 8.5 x 11 x 0.375 in. (22 x 28 x 1 cm) 4 in. (10 cm) 2.75 in. (7 cm) above base plate 20 lb (9.1 kg) 120 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
