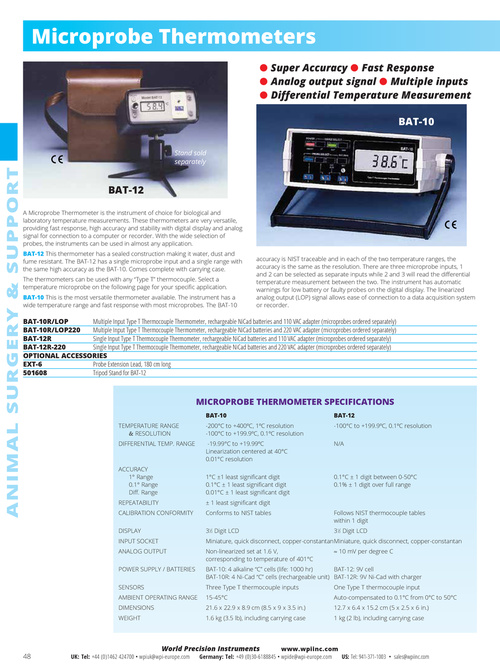

Microprobe Thermometers ● Super Accuracy ● Fast Response ● Analog output signal ● Multiple inputs ● Differential Temperature Measurement BAT-10 Stand sold separately ANIMAL SURGERY & SUPPORT BAT-12 A Microprobe Thermometer is the instrument of choice for biological and laboratory temperature measurements. These thermometers are very versatile, providing fast response, high accuracy and stability with digital display and analog signal for connection to a computer or recorder. With the wide selection of probes, the instruments can be used in almost any application. BAT-12 This thermometer has a sealed construction making it water, dust and fume resistant. The BAT-12 has a single microprobe input and a single range with the same high accuracy as the BAT-10. Comes complete with carrying case. The thermometers can be used with any “Type T” thermocouple. Select a temperature microprobe on the following page for your specific application. BAT-10 This is the most versatile thermometer available. The instrument has a wide temperature range and fast response with most microprobes. The BAT-10 accuracy is NIST traceable and in each of the two temperature ranges, the accuracy is the same as the resolution. There are three microprobe inputs, 1 and 2 can be selected as separate inputs while 2 and 3 will read the differential temperature measurement between the two. The instrument has automatic warnings for low battery or faulty probes on the digital display. The linearized analog output (LOP) signal allows ease of connection to a data acquisition system or recorder. BAT-10R/LOP Multiple Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 110 VAC adapter (microprobes ordered separately) BAT-10R/LOP220 Multiple Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 220 VAC adapter (microprobes ordered separately) BAT-12R Single Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 110 VAC adapter (microprobes ordered separately) BAT-12R-220 Single Input Type T Thermocouple Thermometer, rechargeable NiCad batteries and 220 VAC adapter (microprobes ordered separately) OPTIONAL ACCESSORIES EXT-6 Probe Extension Lead, 180 cm long 501608 Tripod Stand for BAT-12 MICROPROBE THERMOMETER SPECIFICATIONS BAT-10 TEMPERATURE RANGE & RESOLUTION DIFFERENTIAL TEMP. RANGE -200°C to +400ºC, 1ºC resolution -100°C to +199.9ºC, 0.1ºC resolution -19.99°C to +19.99ºC Linearization centered at 40°C 0.01°C resolution 1°C ±1 least significant digit 0.1°C ± 1 least significant digit 0.01°C ± 1 least significant digit ± 1 least significant digit Conforms to NIST tables 31⁄2 Digit LCD Non-linearized set at 1.6 V, corresponding to temperature of 401°C Follows NIST thermocouple tables within 1 digit 31⁄2 Digit LCD ≈ 10 mV per degree C BAT-12 -100°C to +199.9ºC, 0.1ºC resolution N/A ACCURACY 1° Range 0.1° Range Diff. Range REPEATABILITY CALIBRATION CONFORMITY DISPLAY INPUT SOCKET ANALOG OUTPUT POWER SUPPLY / BATTERIES SENSORS AMBIENT OPERATING RANGE DIMENSIONS WEIGHT 0.1°C ± 1 digit between 0-50°C 0.1% ± 1 digit over full range Miniature, quick disconnect, copper-constantan Miniature, quick disconnect, copper-constantan BAT-10: 4 alkaline “C” cells (life: 1000 hr) BAT-12: 9V cell BAT-10R: 4 Ni-Cad “C” cells (rechargeable unit) BAT-12R: 9V Ni-Cad with charger Three Type T thermocouple inputs 15-45°C 21.6 x 22.9 x 8.9 cm (8.5 x 9 x 3.5 in.) 1.6 kg (3.5 lb), including carrying case One Type T thermocouple input Auto-compensated to 0.1°C from 0°C to 50°C 12.7 x 6.4 x 15.2 cm (5 x 2.5 x 6 in.) 1 kg (2 lb), including carrying case 48 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
